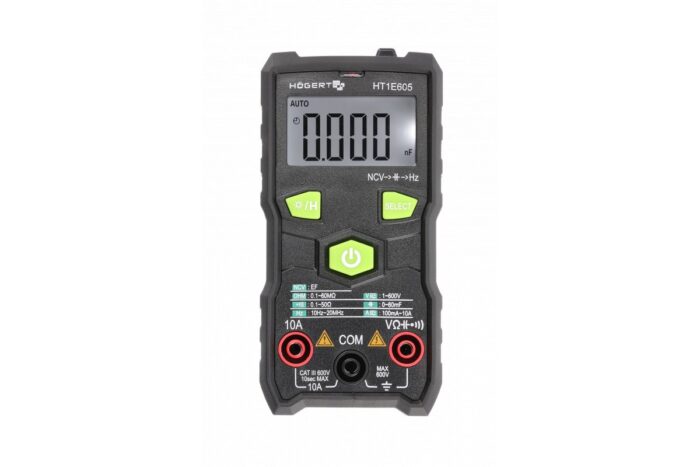

Description Description Digital meter used for diagnostics and detection of faulty components of electrical installations. Thanks to the FULL-SMART technology, it is very easy to use, it can be used even by inexperienced users. Used in the automotive, electrical and installation industries. Characteristic SMART technology – the meter recognizes the measured parameter itself and automatically adjusts the measurement range (AUTO RANGE) of direct and alternating voltage, diode test or resistance SELECT – switch functions for non-contact NCV / capacitance / frequency / current measurement TRUE RMS measurement of alternating current and voltage – precise determination of the effective value of current for both sinusoidal and distorted waveforms NCV enables non-contact detection of current in conductors DATA HOLD allows you to store the currently measured value on the display the multimeter allows you to measure AC and DC voltage up to 600 V, DC and AC current up to 10 A and resistance up to 60 MΩ, capacity up to 60 mF, frequency up to 20 mHz, diode and continuity test, and 1.5 / 9 V battery test has a large LCD screen with backlight, which allows displaying the result 6000 built-in flashlight allows you to work at night and in the dark rubber casing protects against mechanical damage comfortable, ergonomic, compact shape enables comfortable work with one hand powered by a 2×1.5 V AAA battery, increased battery life thanks to the automatic switch-off function on the back of the housing, there is a support for setting the device in a position that facilitates data reading on the display, special grips for attaching cables the set includes test leads. Technical data C [mF] 60 DATA HOLD YES I AC [A] 10 I DC [A] 10 NCV YES Quantity in package 1 R [Ω] 60m RANGE AUTO RANGE Torch YES TRUE RMS YES U AC [V] 45 U DC [V] 600
