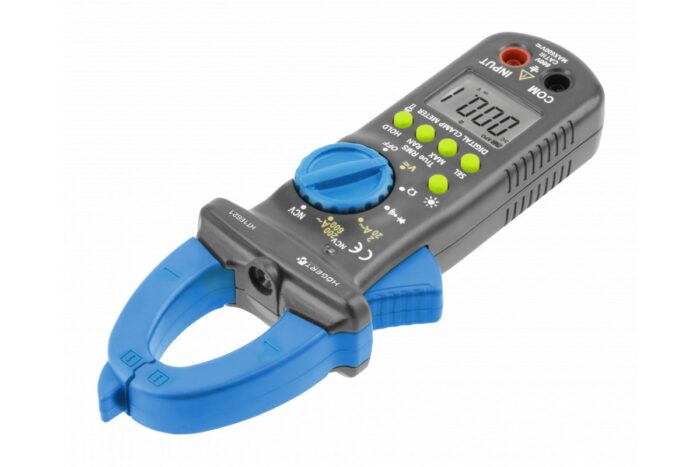

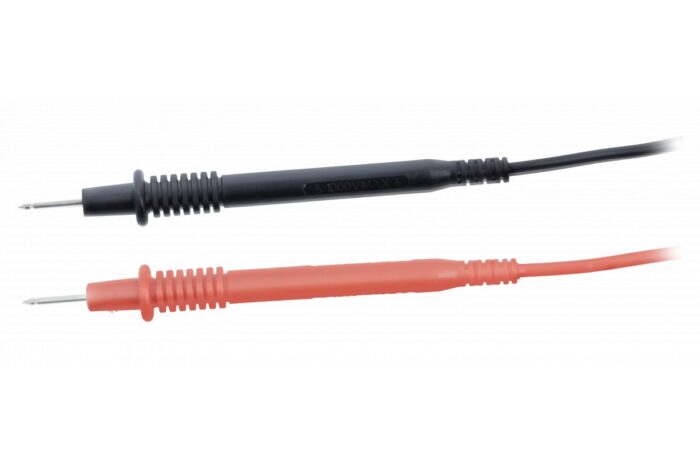

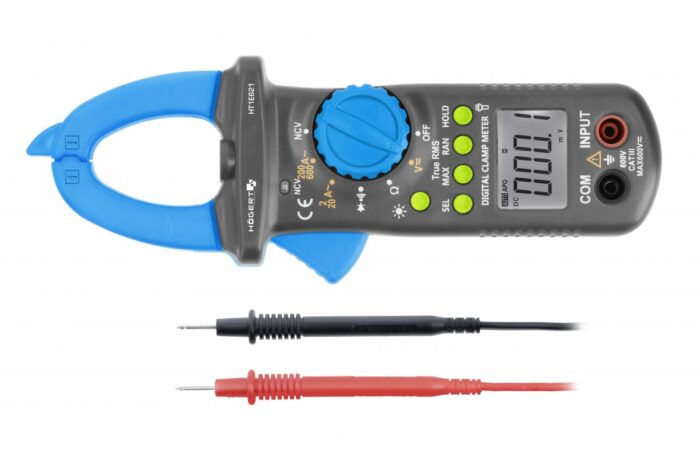

Description Description The meter is equipped with clamps to measure AC current in a single conductor by induction. Used to diagnose and detect faulty electrical components. Used in the automotive, electrical and installation industries. Characteristic TRUE RMS measures alternating current and voltage – precise RMS value for both sinusoidal and deformed waveforms VFC measures variable frequency current and voltage DATA HOLD keeps the currently measured value on the display SELECT – function selection; RANGE – switches between auto and manual selection of the operating range MIN / MAX keeps the minimum / maximum measurement readings on the display; multimeter measures DC and AC voltage up to 600 V, AC current up to 600 A and resistance up to 60 MΩ, performs diode and continuity tests large LCD display with backlight bilt-in fl ashlight enables work at night and in the dark comfortable, ergonomic, compact shape allows comfortable, single-hand operation; 3×1,5 V AAA battery power supply, longer battery life thanks to Auto Power Off; max. diameter of the measured cable is 20 mm test leads included. Technical data Additional information RJ11 RJ45 CABLE INDICATION CONTINUITY TEST SEQUENCE TEST DATA HOLD YES I AC [A] 600 NCV YES Quantity in package 1 R [Ω] 60m RANGE AUTO RANGE Torch YES TRUE RMS YES U AC [V] 45 U DC [V] 600
