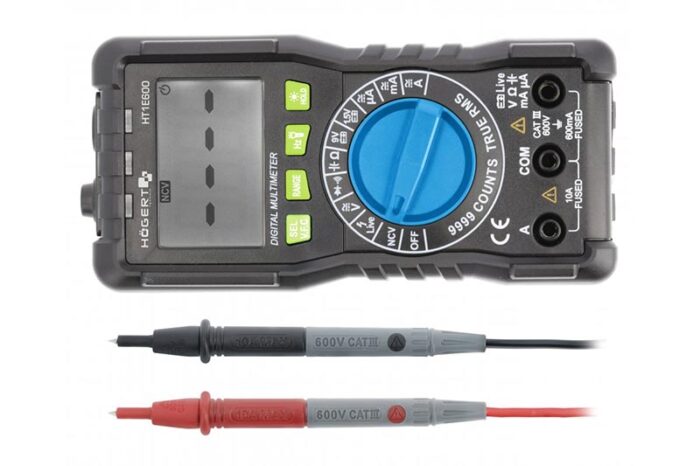

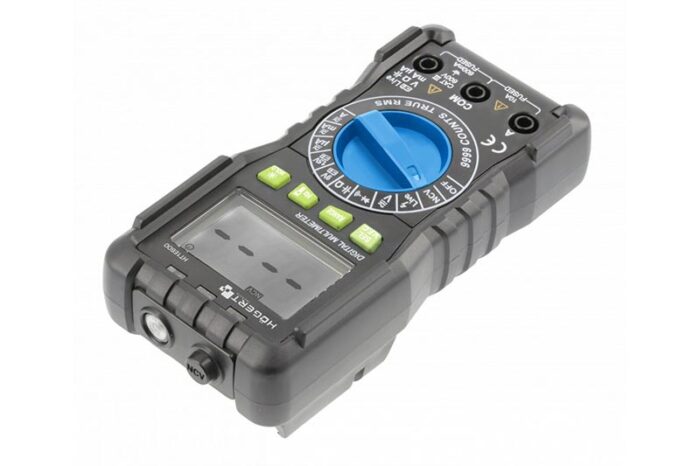

Description Description Digital multimeter is used to diagnose and detect faulty electrical components. Used in the automotive, electrical and installation industries. Characteristic TRUE RMS measures alternating current and voltage – precise RMS value for both sinusoidal and deformed waveforms NCV enables non-contact detection of live current in cables VFC measures variable frequency current and voltage DATA HOLD keeps the currently measured value on the display LIVE – cable phase measurement / detects AC current in the cable RANGE – switches between auto and manual selection of the operating range multimeter measures DC and AC voltage up to 600 V, DC and AC current up to 10 A and resistance up to 99,99 MΩ, capacitance up to 99,99 mF, frequency up to 60 kHz, performs diode and continuity tests and battery tests with 1,5 / 9 V large LCD backlit screen which 9999 counts display built-in fl ashlight enables work at night and in the dark rubber casing protects against mechanical damage comfortable, ergonomic, compact shape allows comfortable, single-hand operation powered by 2×1,5 V AAA batteries, longer battery life thanks to Auto Power Off a stand on the back of the body enables to position the device for better visibility of the displayed data, special holders for attaching cables and a bracket for hanging the meter on the wall test leads included. Technical data Additional information BATERY TEST 1,5 / 9V VFC C [mF] 99,99 DATA HOLD YES I AC [A] 10 I DC [A] 10 NCV YES Quantity in package 1 R [Ω] 99.99m RANGE AUTO RANGE Torch YES TRUE RMS YES U AC [V] 45 U DC [V] 600
